Energy conservation in two dimensions

• The experiment aims to create a fully-translational and nearly-elastic collision between two balls to demonstrate energy conservation in 2D.
• It involves a complete cycle of data recording, processing, plotting, and uncertainty calculation for the quantitative representation of the results.
• By comparing experimental observations with theory, it motivates students to explore the reasons for any deviation.
Product Code: EXP-MECH1
Brand: Qosain Scientific
Availability: In Stock
Download Product Details

Rs. 40,000 Rs. 50,000
You save Rs. 10,000 (20% Off)
Shipping & Delivery
Free Shipping (All over Pakistan)

The Experiment

  • Simple table top setup to observe energy conservation in 2D.

  • Fully translational and nearly elastic collision between two balls.

  • Complete cycle of data recording, processing and plotting.

  • Investigating discrepancies between theoretical predictors and experimental observations.

  • Applying equations of motion.

  • Calculating uncertainty.


How does it work?

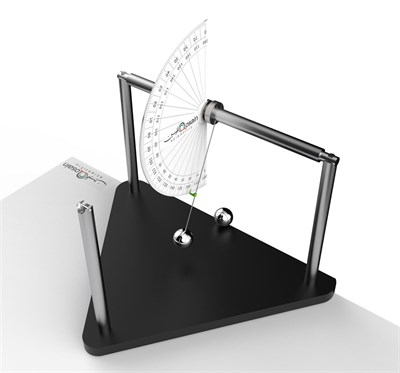

The experimental setup comprises two parts. The first consist of metallic balls of nearly equal masses. One of them is attached to a thin rod connected to a bearing to from a relatively low-loss pendulum, which is held at its highest position by a thread that goes over a pulley.

The second part, the floor stage, is placed right below the table. When the untethered ball is struck by the pendulum, it flies off the tee and drops onto the piece of carbon paper laid on the floor stage. It leaves a small mark on the graph paper, which is used to record the position of the ball. Using basic equations of motion, the formula connecting the distance covered by the free ball and the angle of the pendulum is derived, results are plotted and compared.


Parts Included

  • Spherical Metal Ball

  • The Pendulum Assembly: The main stand holding the pendulum and the protractor, a pulley for the thread, a tee to hold the free ball before the collision and a screw to adjust the level of the pendulum.

  • Floor Stage: A wooden stage to place the carbon paper on for recording the position.

  • Thread: For pendulum and holding back the pendulum.




No Specifications Found
